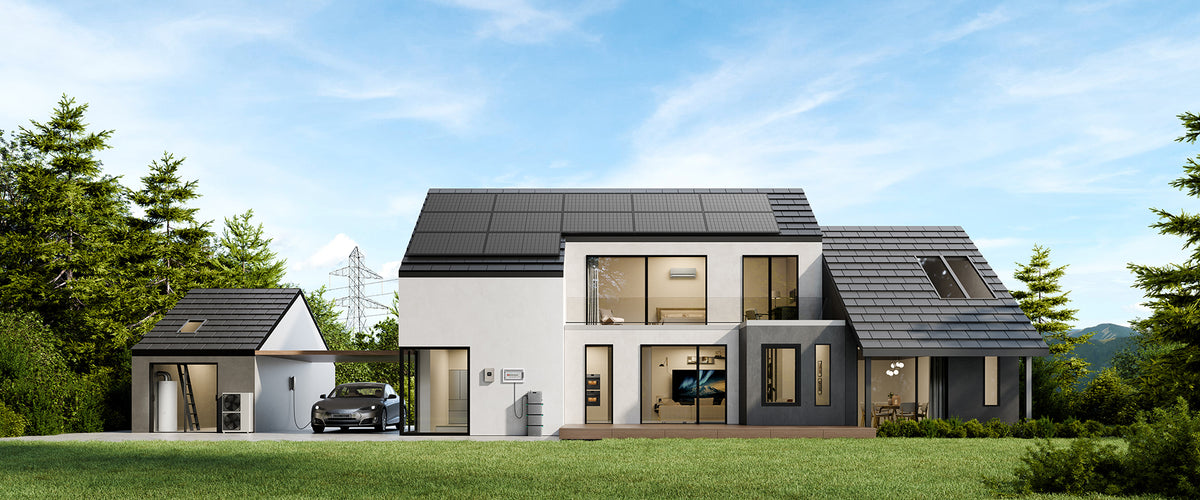

Next Gen 2400W AC-Coupled,
Retrofit Power Storage for Every Rooftop.
One system for everyday use and peak demand.
2400W Bi-Directional AC
Most appliances covered. Less grid needed.
From everyday essentials to higher-power kitchen loads, 2400W bi-directional AC helps run more of your home on stored solar.
During peak-price hours, it discharges to reduce costly grid draw.

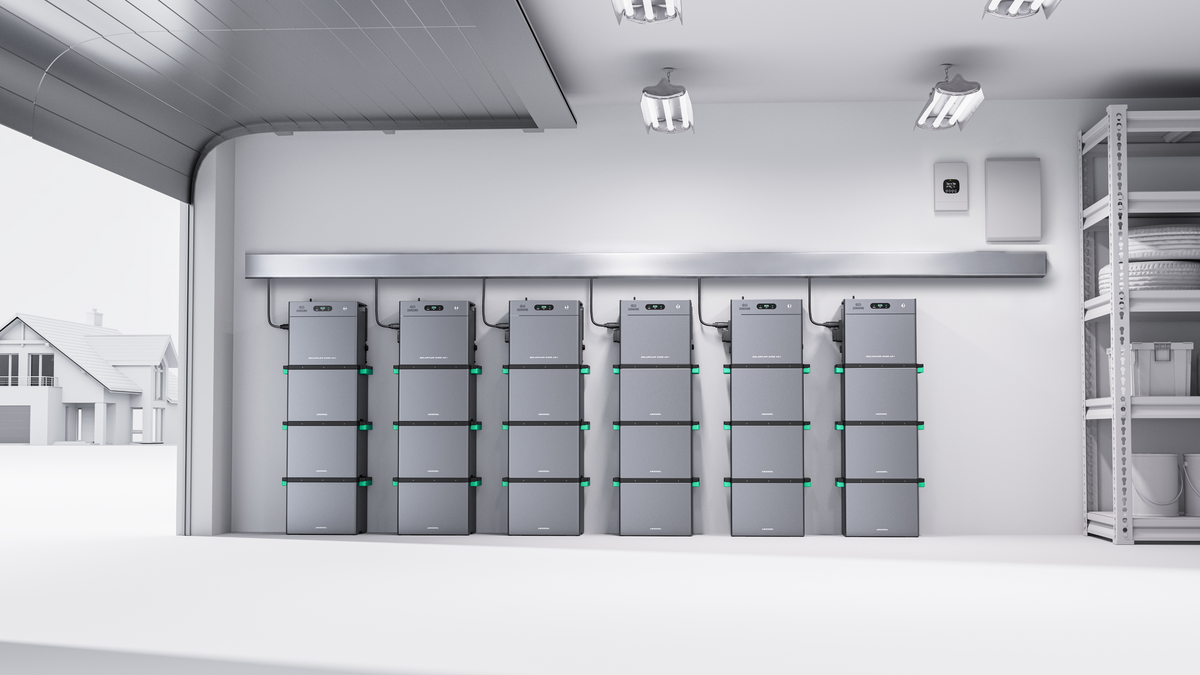

2.4kWh to 16.8kWh
Scale as you grow.
Start with what you need today, then expand later—ideal for future higher-demand loads like EV charging and heat pumps.

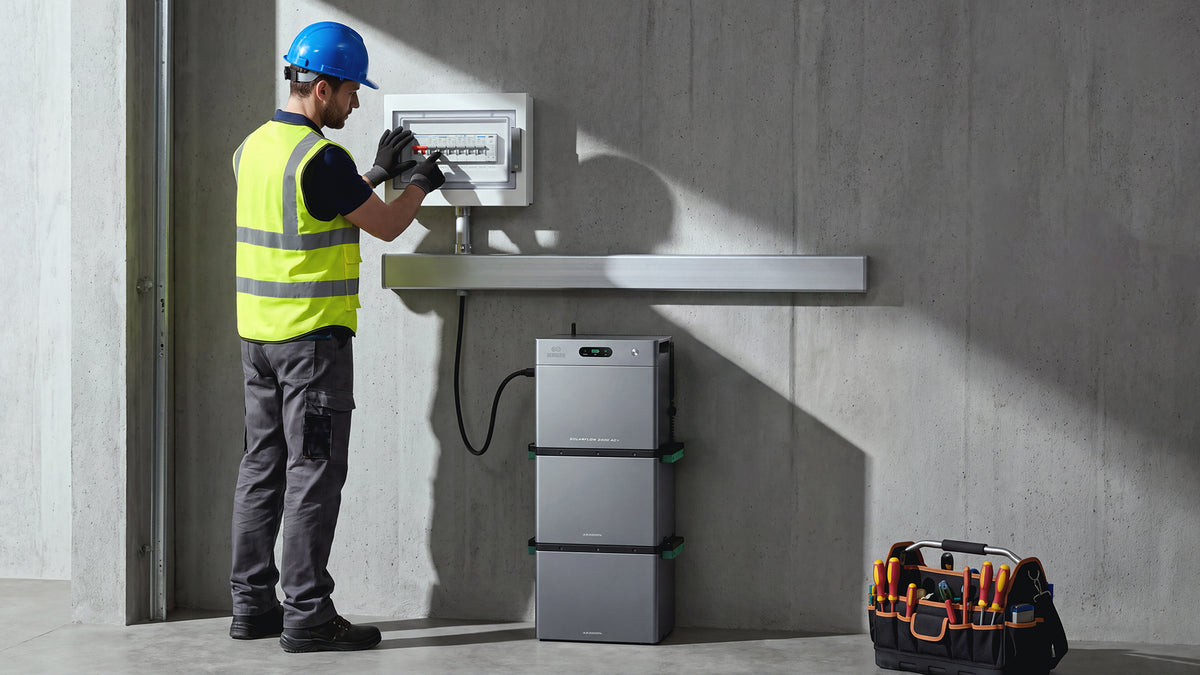

Easy Setup in Clear Steps
Connect. Install. Power Up.

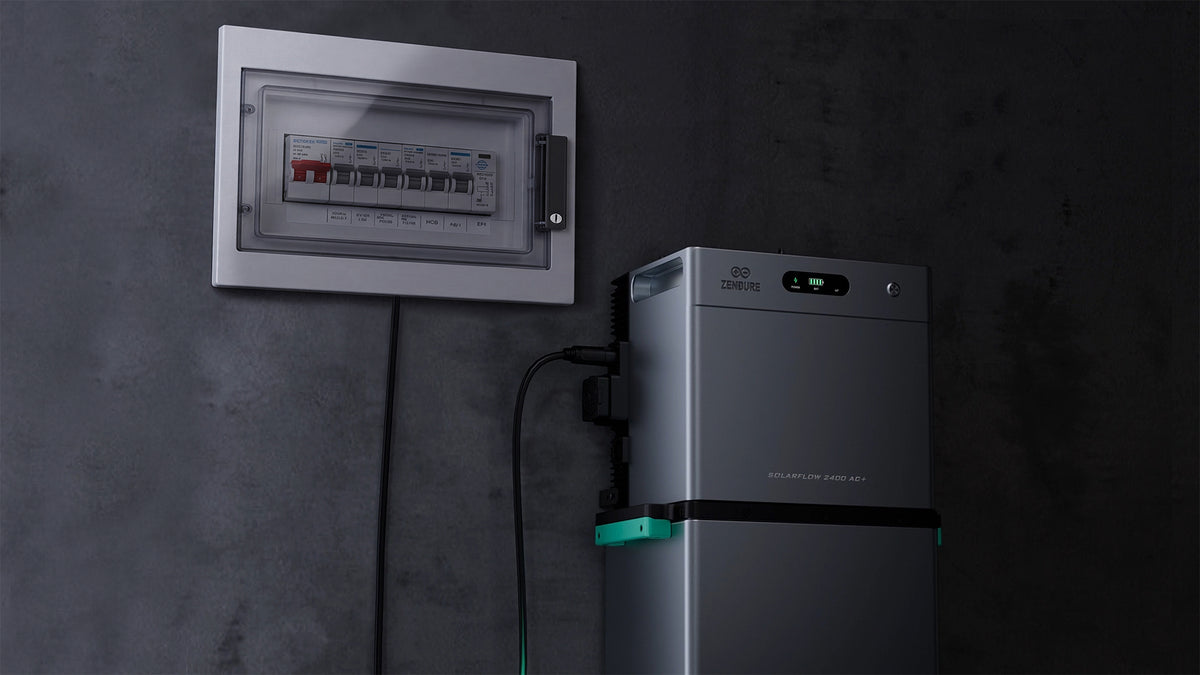

Stack the batteries. Connect PV. Hardwire to the consumer unit. Activate in the app. Done.
*Hardwired installation must be carried out by a Part P-qualified electrician.

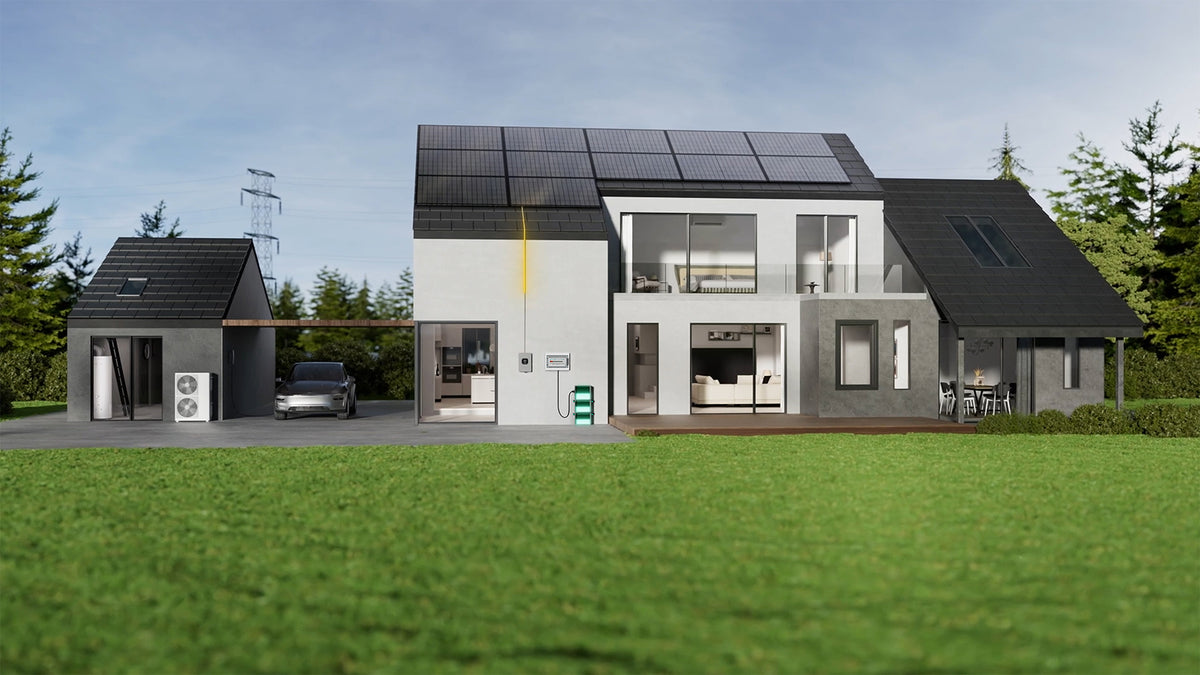

Higher Self-Consumption
Store surplus solar during the day and use it at night. Compared to standard micro-inverter export,
integrated storage can lift self-consumption by 60%+, maximizing the value of your solar energy.
Charge low, discharge high
Automatically charge during low-price periods (including negative prices where available)
and discharge during peaks to reduce expensive grid imports.

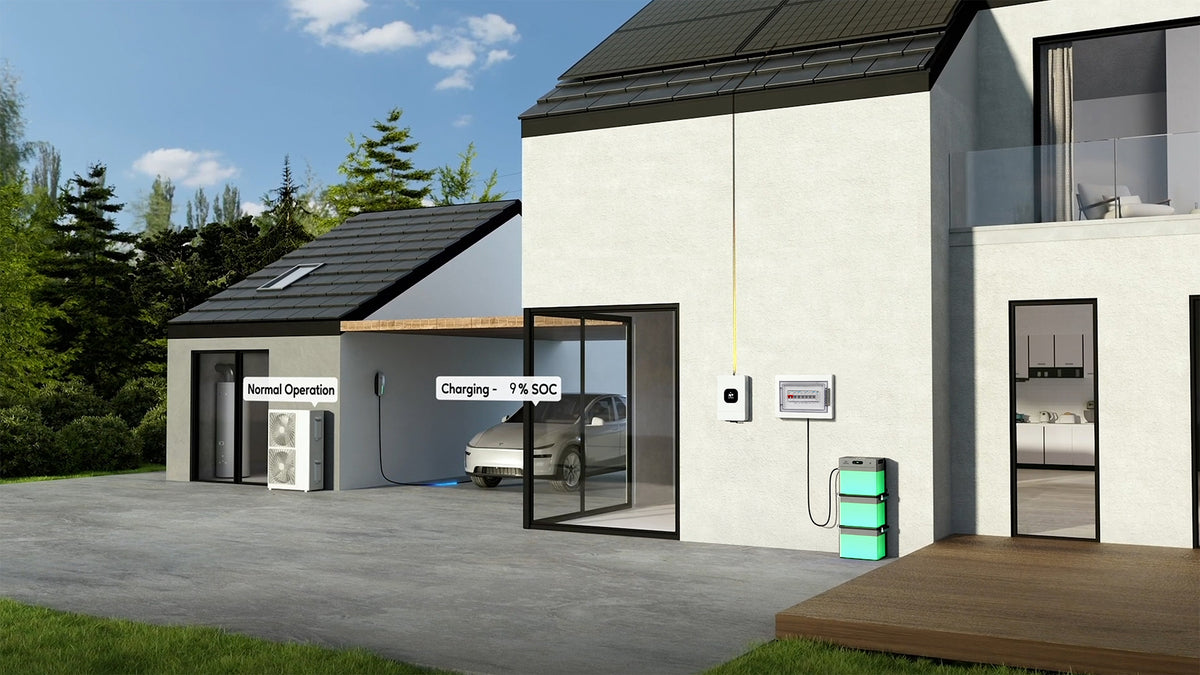

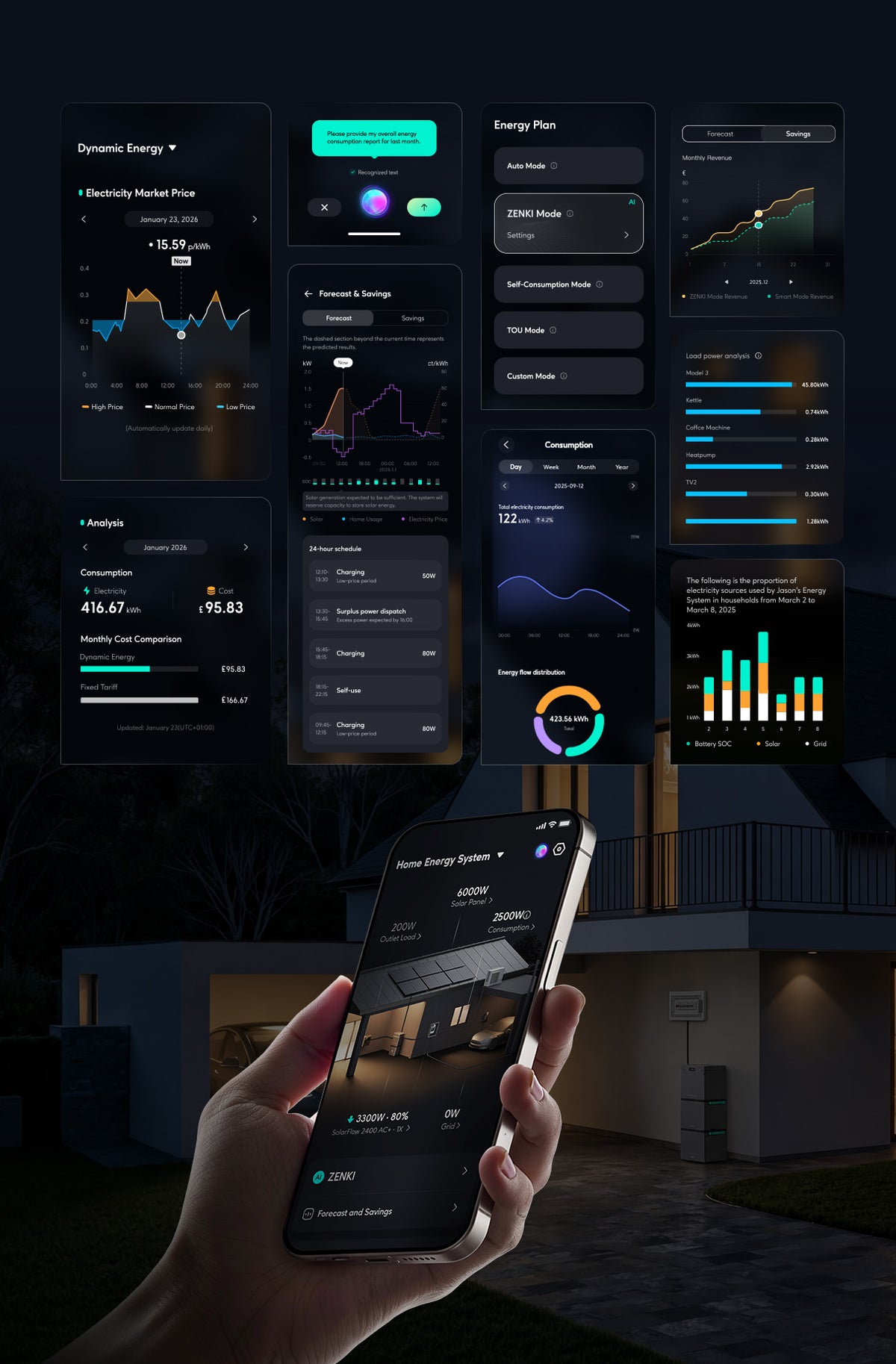

AI Prediction & Scheduling
ZENKI™ 2.0 learns your usage patterns and forecasts PV yield and electricity prices to automate charging and discharging:
High price:
prioritize battery discharge (incl. heat pump / EV)
Low price:
charge from the grid
Negative price:
maximize low-cost energy for home and charging
Dynamic Tariff
- Basic
~2,000 kWh
Annual use
£ 237
Est. max. annual savings
4.22 years
Payback Period
Recommended set:

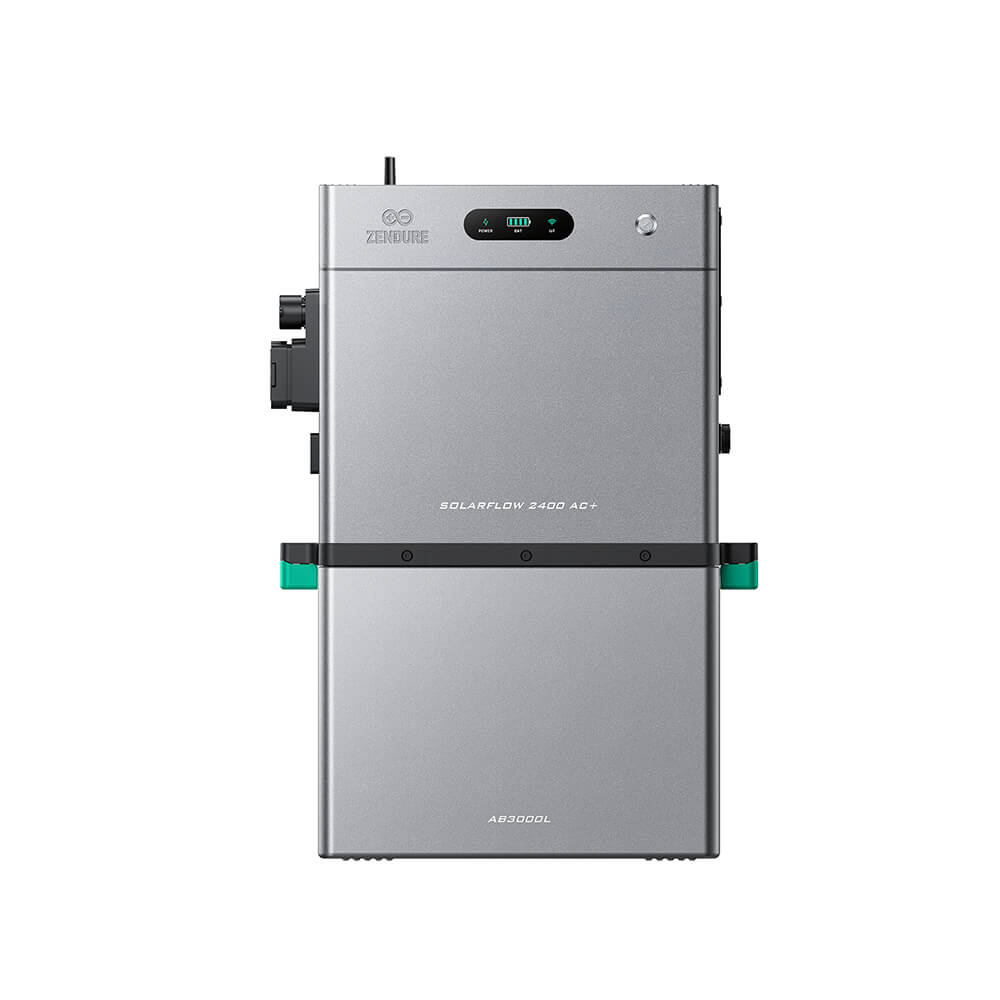

1× SolarFlow 2400 AC+ (2.4kWh)

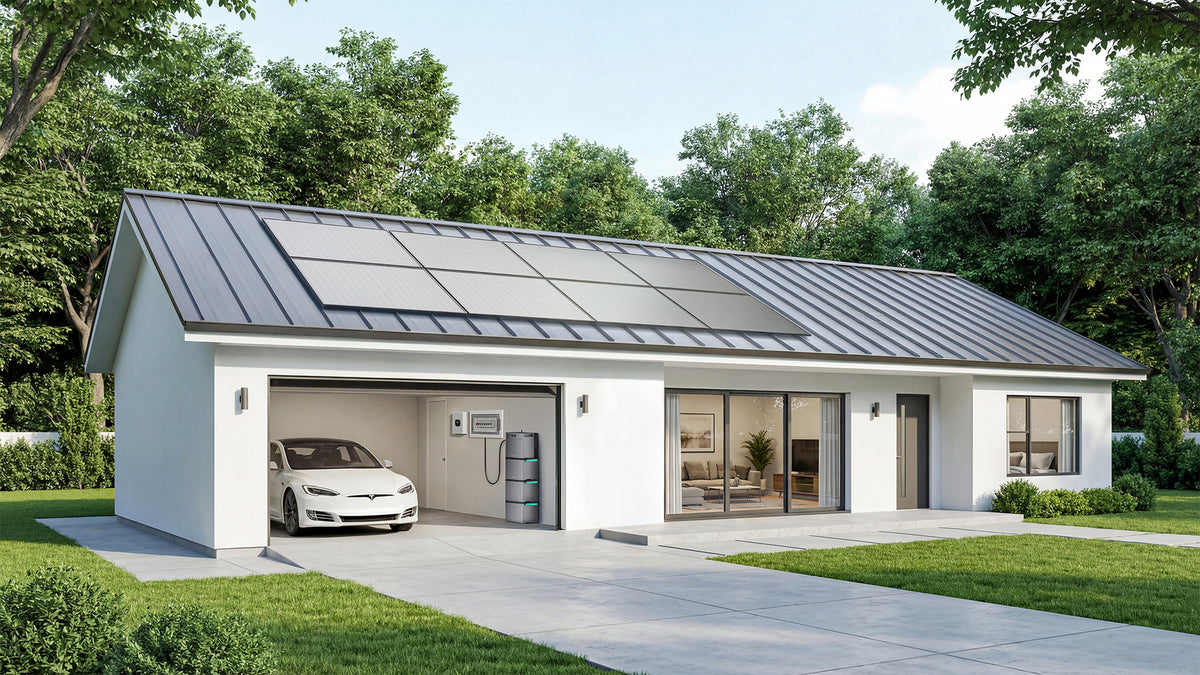

Dynamic Tariff
- Advanced
~4,000 kWh
Annual use
£ 1088
Est. max. annual savings
2.9 years
Payback Period
Recommended set:

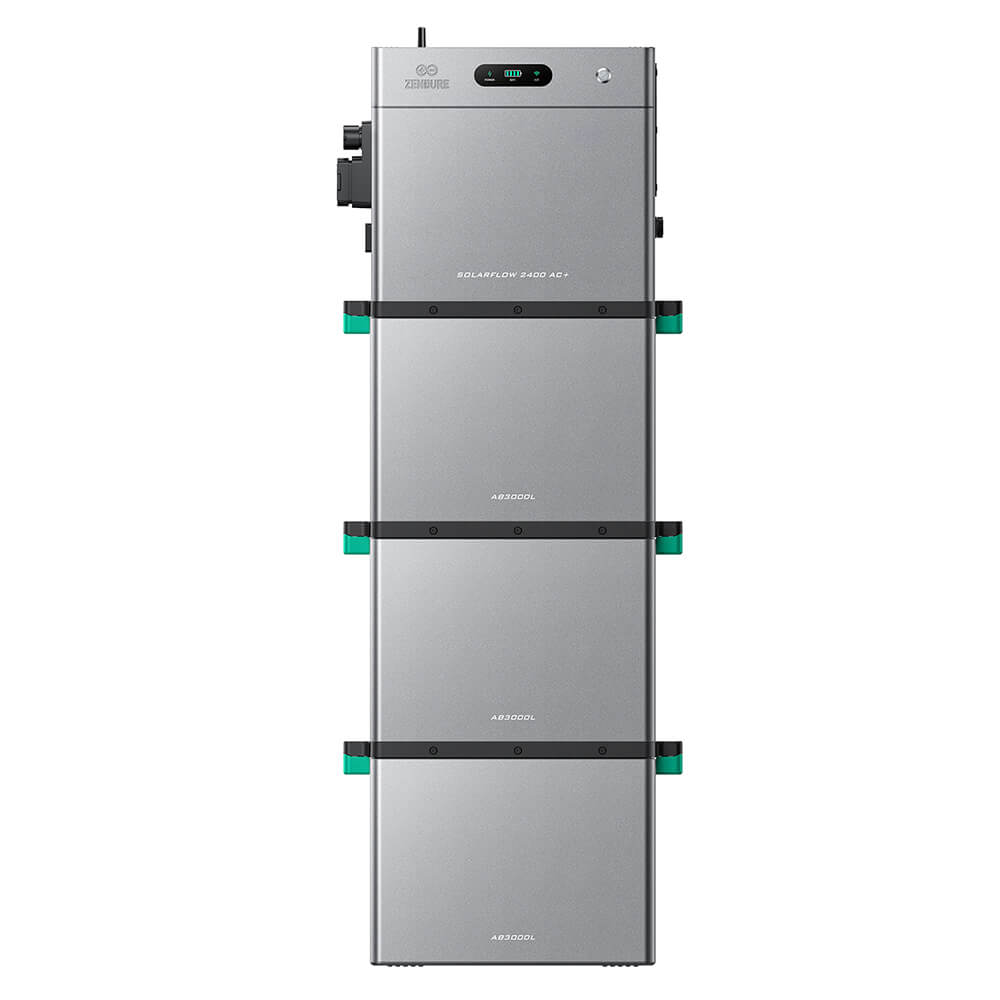

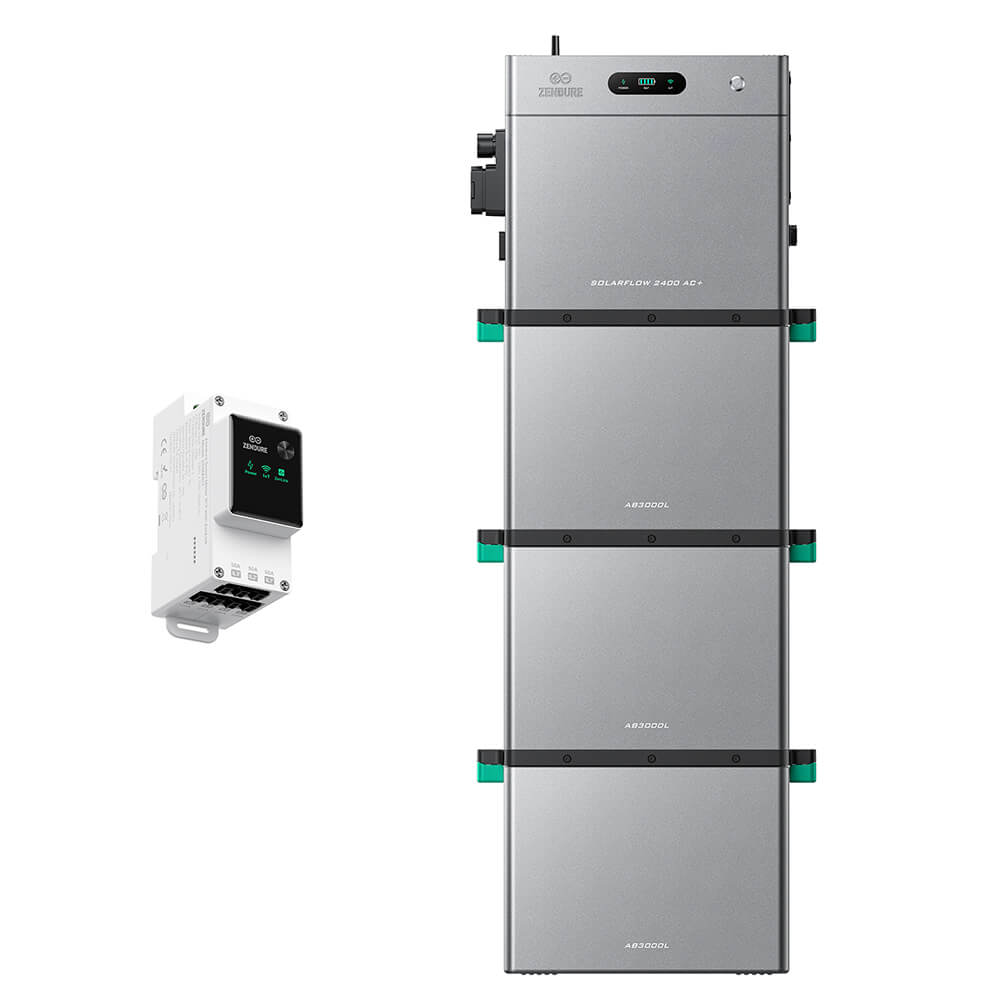

1× SolarFlow 2400 AC+ (2.4kWh) + 3× AB3000L (Total 11.04kWh)

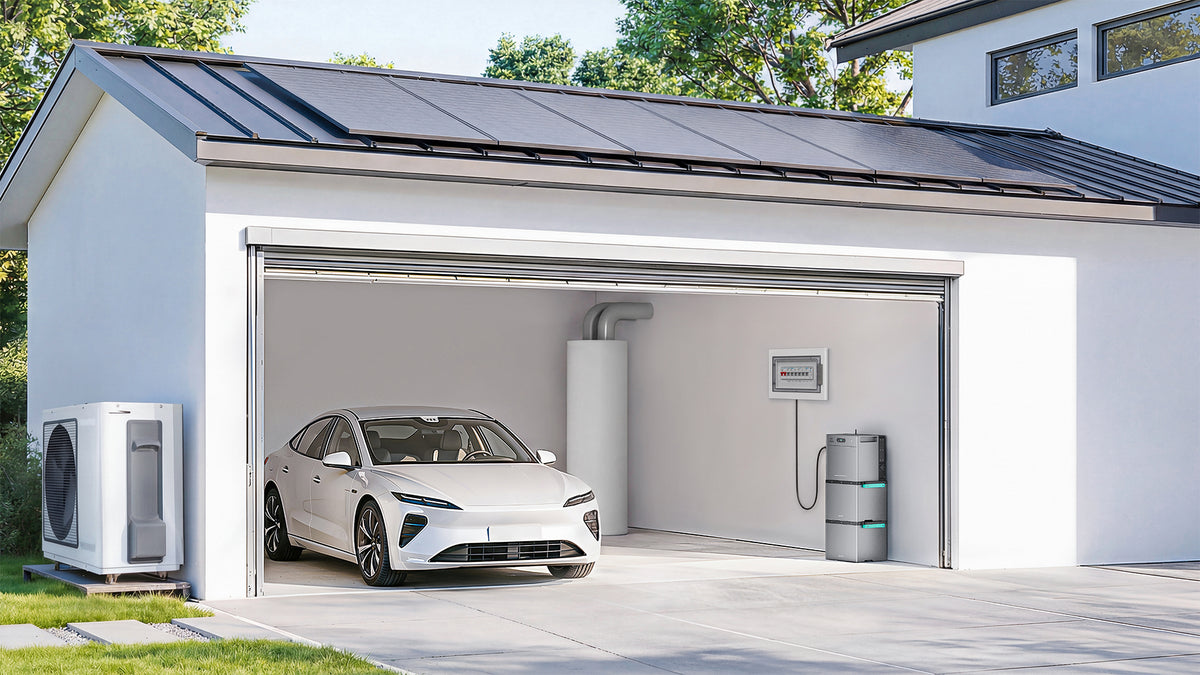

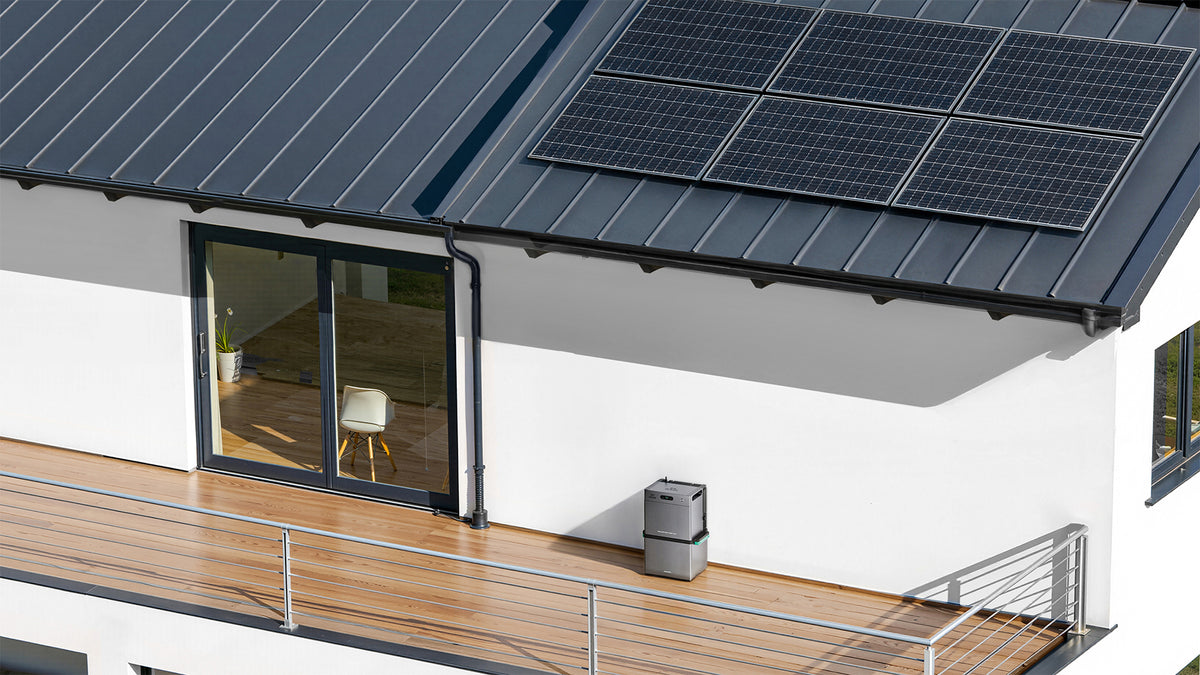

Fixed Tariff - Rooftop
PV retrofit households
~5,000 kWh
Annual use
£ 1,626
Est. max. annual savings
2.77 years
Payback Period
Recommended set:

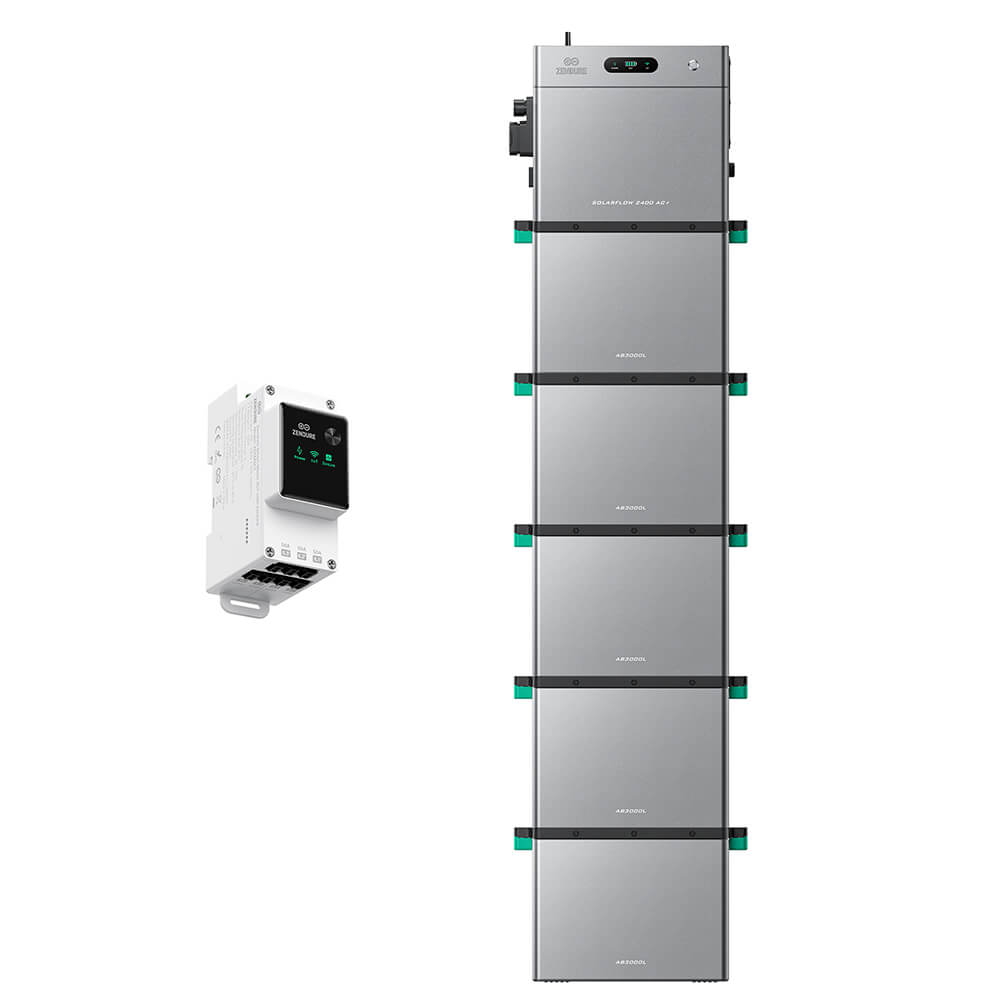

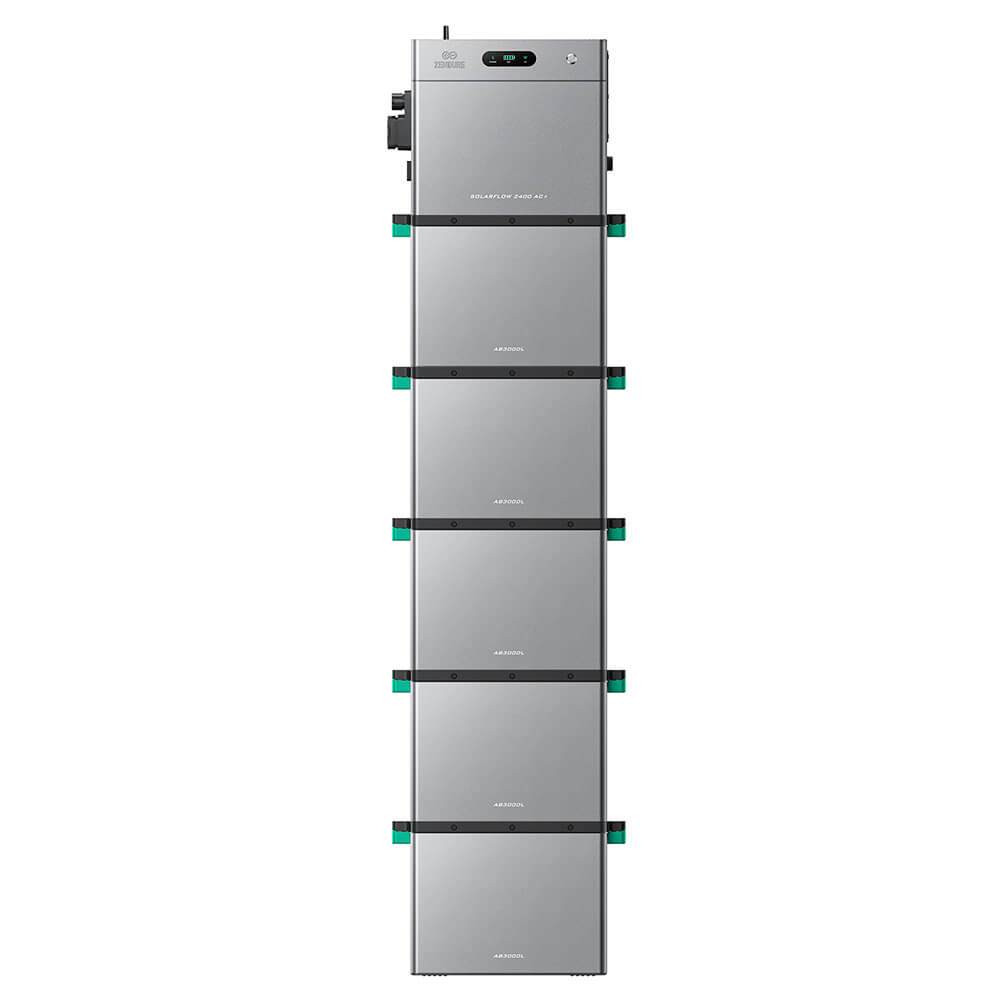

1× SolarFlow 2400 AC+ (2.4kWh) + 5× AB3000L (Total 16.8kWh)

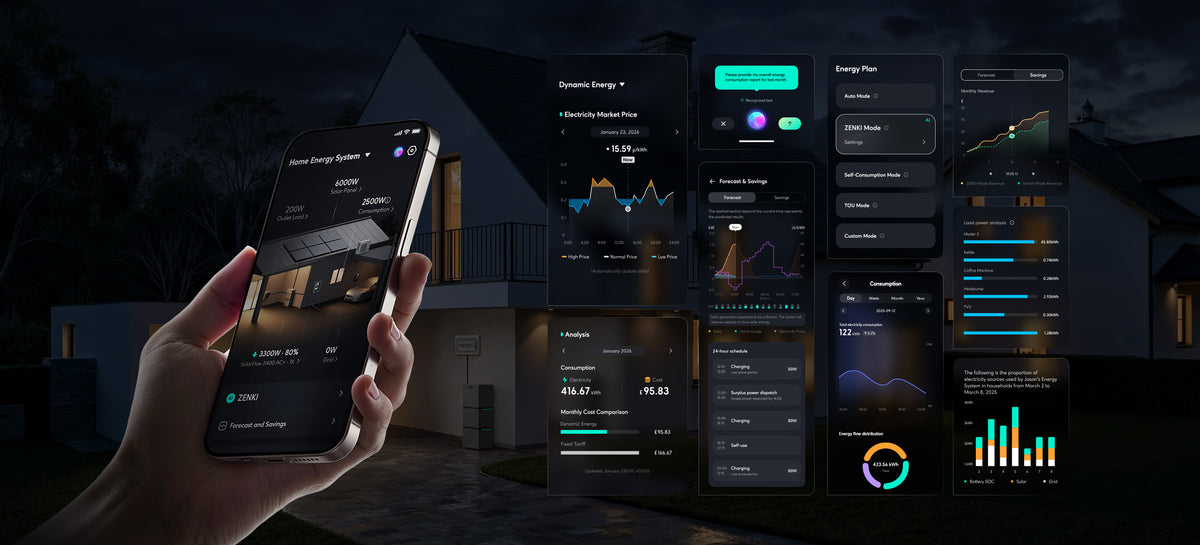

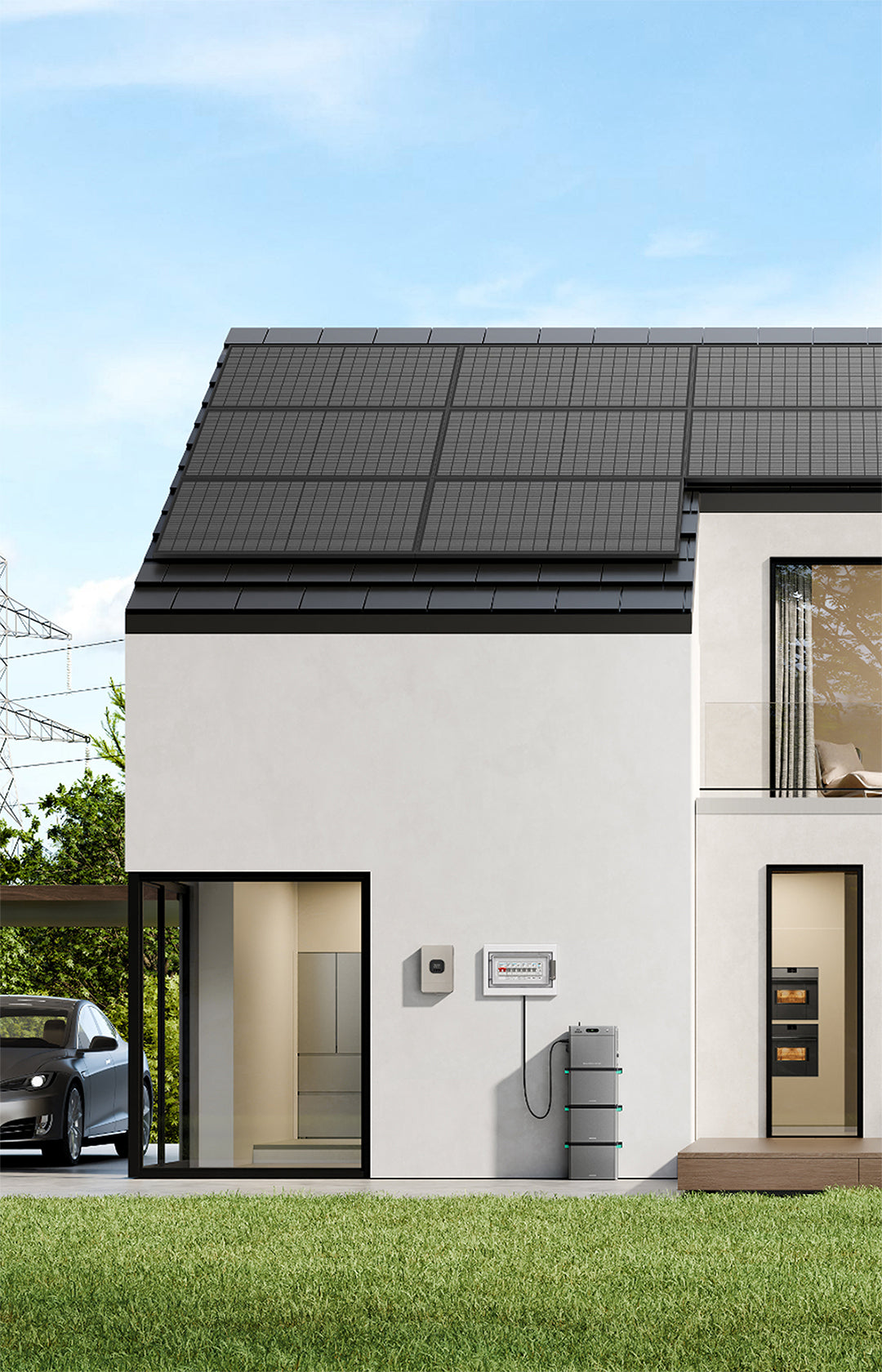

Home Energy Management System (HEMS)
One View for Home Energy
HEMS brings PV, storage, grid, and household loads together—so you can monitor, manage,
and automate how energy is generated, stored, and used.
Metering accessories for precise power control
Accessory compatibility with Shelly, EverHome, Homewizard, and more
Shelly Pro 3EM Pro
Shelly Pro 3EM-400
Shelly Pro 3EM-3CT63
Shelly 3EM
EverHome EcoTracker IR
EverHome EcoTracker P1
5000+ Heat pump & Tesla EV charging coordination
MQTT supported: integrates with Home Assistant, Homey, and more
Covering 25 major UK energy providers in the UK.
100% Compatible with rooftop PV inverters on the market
10-year warranty,
up to 15-year lifespan

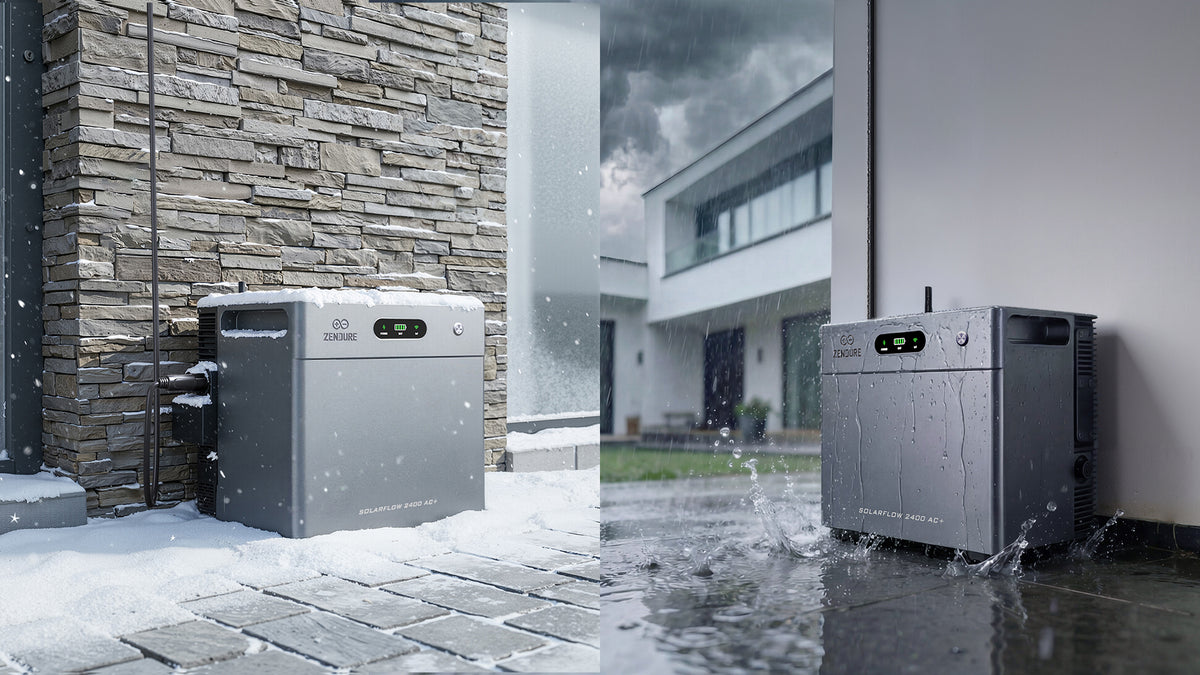

Battery self-heating | IP65-rated design
Installation & Connection
Solar & Generation
Battery & Charging/Discharging
Smart Control & Grid Integration
Seasonal maintenance
Installation & Connection
How is the system installed?
Fully certified under ENA G98 to comply with UK industry regulations, the SolarFlow 2400 Pro requires installation by a Part P-registered electrician. To support compliant installation, the system comes standard with hardwiring terminals.
Has the SolarFlow 2400 AC+ obtained ENA G98 certification?
Yes. The SolarFlow 2400 AC+ has fully passed ENA G98 certification and is officially registered.
Can it be connected to PV panels?
The SolarFlow 2400 AC+ cannot be directly connected to PV modules, but it can be used as an AC-coupled storage system for an existing PV system.
Is a Wi-Fi connection and the Zendure App required?
Yes. The Zendure App is required for system setup, selecting operating modes, and remote monitoring. Please ensure the device is connected to a Wi-Fi network for real-time data synchronization.
What are the requirements for the installation environment?
1. The device can be installed indoors or outdoors, but direct sunlight and rain exposure should be avoided.
2. Ensure that the device is within Wi-Fi coverage.
3. Leave at least 15 cm of space above the unit and at least 5 cm of ventilation space at the rear.
4. The installation location must be within the length range of the PV cables and the 3 m AC power cable.
5. Keep the device away from flammable or explosive materials.
6. Place the device on a stable and solid surface.
Solar & Generation
How to integrate with an existing home PV system?
When a Zendure CT or smart meter detects excess electricity from an existing PV system feeding back into the grid, it sends a charging command to the SF2400 AC+, prioritizing storing this surplus PV energy in the battery.
Can the AC off-grid port be connected to a PV inverter?
Yes. This port supports connecting PV microinverters with rated power ≤ 2400 W to provide energy input to the device. However, it will only function when the device is connected to the grid.
Can the AC off-grid port be connected to a fuel generator?
No. The AC off-grid port is only for supplying power to loads. Do not connect a fuel/diesel/gasoline generator or any grid-mimicking power source, as this may damage the device or pose a safety risk.
Battery & Charging/Discharging
Which battery models are supported?
Supported battery model: AB3000L

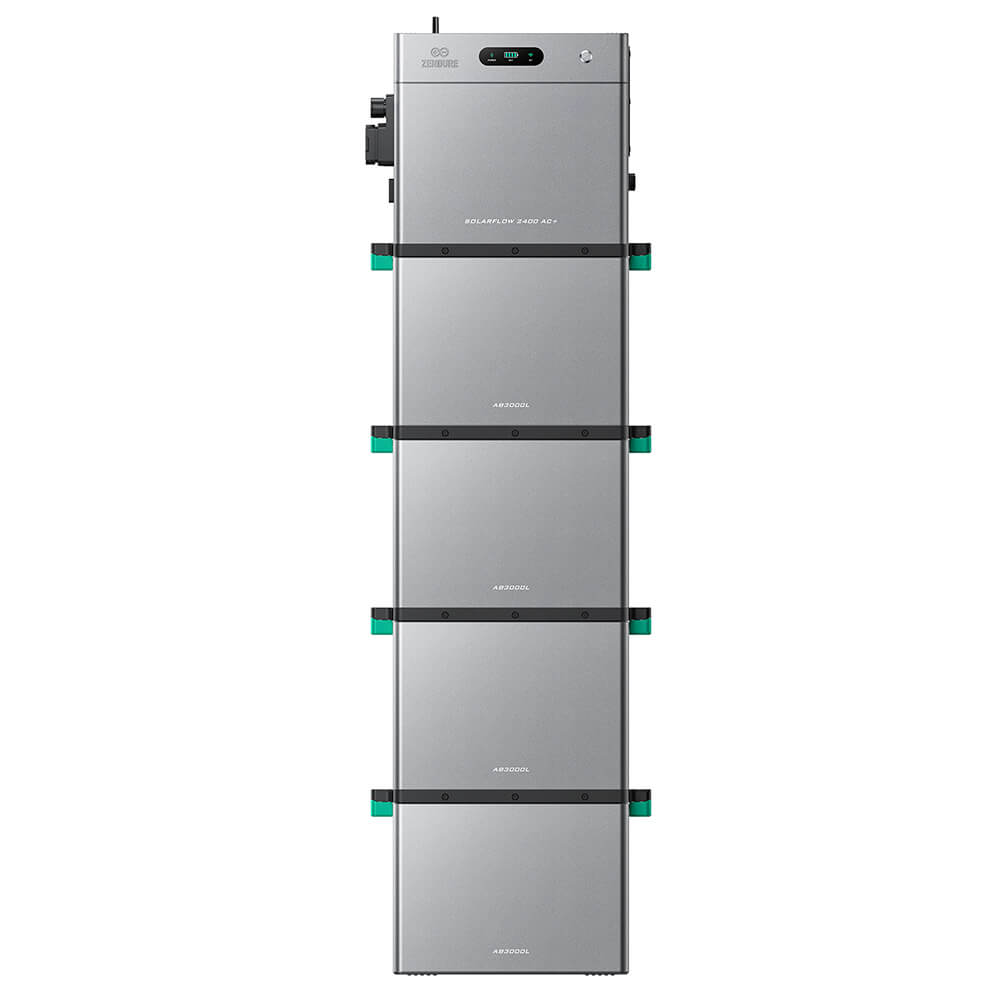

Up to 5 additional batteries can be stacked.
Built-in battery capacity:
2400 Wh
Can the PV panels and battery supply power simultaneously?
Yes. The maximum combined charging power is 2400 W.
Does it support EPS functionality?
Yes. When the device detects a grid power outage, it automatically switches to supply power to loads connected to the AC off-grid port from the battery, providing backup power.
Can the AC off-grid port be used when the device is not connected to the grid?
Yes. The AC off-grid port can operate normally even when the device is not connected to the grid, with a rated output of 2400 W and a peak output of 3600 W (200 ms).
Smart Control & Grid Integration
Which smart meters can SolarFlow 2400 AC+ work with?
It can work with Zendure Smart Meter 3CT, Smart Meter D0/P1, Shelly Pro 3EM, Shelly 3EM, Everhome Ecotracker IR, and HomeWizard P1 Meter, enabling automatic power adjustment.
How does a smart meter work?
A smart meter can monitor the household’s total electricity consumption and the direction of current in real time. When household power demand increases, it automatically raises the discharging power; when demand decreases, it lowers the output. This enables precise real-time control at the 1 W level.
How does a smart meter help achieve “zero energy waste”?
The smart meter dynamically adjusts power based on real-time household load, matching electricity generation with consumption and avoiding energy feedback waste.

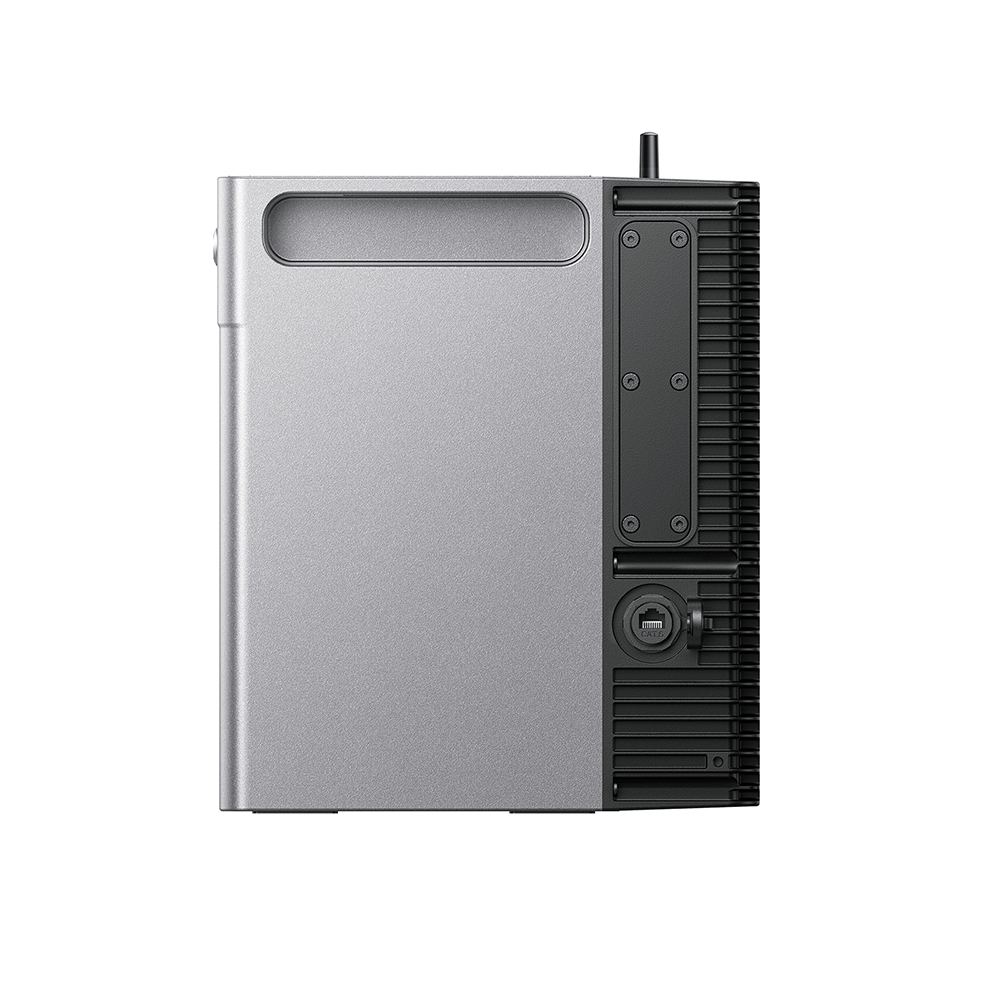

What is the purpose of the RJ45 port on the device?
The RJ45 port supports RS485 communication and will enable real-time RS485 communication with the upcoming Smart Meter 3CT-S / 1CT-S.
Note: This port does not support Ethernet protocols and cannot be directly connected to routers, switches, or computer network ports.
Does it support Home Assistant?
Yes.
Seasonal maintenance
How should the device be stored?
For long-term storage, discharge the battery to 30% and charge it to 60% every 3 months. If the battery level is below 1% after use, charge it to 60% before storage. Keeping the battery at a low charge for extended periods may cause irreversible damage and shorten battery life.
Winter operation precautions:
- Keep the device dry and avoid frost or freezing conditions.
- Regularly check cable connections and waterproofing.
- If the device is unused for a long period, it is recommended to recharge it every 2–3 months.
